CWDM/DWDM Reconfigurable OADM Optical Add Drop Multiplexing Card WDM System

Name: CWDMDWDM Reconfigurable OADM Optical Add Drop Multiplexing Card WDM System
Brand: Olycom
Price: 1 USD

Wholesale CWDM/DWDM Reconfigurable OADM Optical Add Drop Multiplexing Card WDM System from china suppliers

Brand Name : Olycom

Model Number : OLY8000-OADM

Certification : CE RoHS FCC

Place of Origin : Guangdong, China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 5000pcs/month

Delivery Time : 3~5 working days

Packaging Details : 1pc in a box

Product name : OADM

Channel number : CWDM:1260~1620/DWDM:1525~1565

Optical interface : LC/UPC

Use : CWDM / DWDM network

Max power consumption : 5W0

Contact Now

Reconfigurable OADM Optical Add Drop Multiplexing Card WDM system

Key Features of OADM

* Support 2/4/8 channel addand drop
* Plug’n play: requires no configuration
* Green product: completely passive, needs no power and no cooling
* Low insertion loss

2CH maximum insertion loss ≤5dB
4CH maximum insertion loss ≤3dB
8CH maximum insertion loss ≤5dB

* High channel isolation

Adjacent isolation ≥25dB
Non-adjacent isolation ≥35dB

Specification of Optical Add Drop Multiplexing Card

Parameter		Technical Indicators			Unit
Channel Wavelength		ITU Grid			nm
Channel Spacing		100GHz			Ghz
Channel		2	4	8
Channel Passband		> 0.3			nm
Insertion Loss Flatness		<0.5			dB
Insertion Loss	In—Drop/Add-Out	<0.9	<1.5	<3	(dB)
	In---out	<1.5	<3.0	<4.5	(dB)
Channel Isolation	Adjacent	25			dB
	Non-adjacent	35			dB
Polarization Dependent Loss		<0.1			dB
Directivity		>50			dB
Return Loss		>45			dBm
Maximum Power Handling		26			mw
Dimension		191 ( W ) x 253 ( D ) x 20 ( H )			mm
Environment	Operating Temperature	-10℃～+60			℃
	Storage Temperature	-40℃～+85			℃
	Relative Humidity	5%~95% Non-condensing

Introduction

OADM board is an important part of WDM system. It can realize the dynamic reconfiguration of optical wavelength channel by OADM module. That is to say, it can dynamically adjust the wavelength resource and fiber path in optical path layer according to the change of traffic and demand in transmission network Path resource allocation makes the most effective use of network resources.

Product diagram

CWDM/DWDM Reconfigurable OADM Optical Add Drop Multiplexing Card WDM System

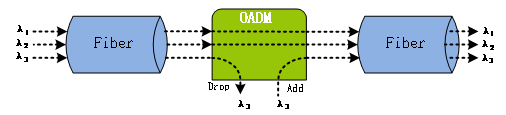

Functional structure

CWDM/DWDM Reconfigurable OADM Optical Add Drop Multiplexing Card WDM System

Shipping

For small quantity order, you can choose DHL/UPS/ FedEx/ by your account or by our agent.
For big quantity order, we can use ocean freight or by air cargo upon your requirement.

Advantage:

1. Manufacturing: We are a powerful factory and has been in this industry about 20 years

2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.

3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.

4. Small order accepted: Low MOQ accepted. 1pcs are available.

5. Insurance: all products 3 years warranty.
