Original Acacia Brand AC200 Digital Coherent CFP2 Module
Network/Line Side Features
1. Capable of retrofitting into existing DWDM infrastructure
2. Reach beyond 1200/2400 km over legacy infrastructure under following conditions:
No change to existing line equipment, e.g., no extra amplification required
Use current in-line DCMs
Same CD/PMD tolerance as current 10G
Transmission with mixed traffic 100G traffic (100GE and/or OTU4)
3. Reach beyond 1200/2400 km over SMF without inline chromatic dispersion compensation
Supports DP-DQPSK (100G), DP-8QAM(200G), and DP-16QAM(200G) Modulation
Supports Absolute (Non-Diff) or Differential Phase Encoding/Decoding Forward Error Correction
Low latency Soft-Decision Forward Error Correction (SD-FEC) without post-FEC error floor
4. Supports backward compatibility to 15% Everest Mode for DP-DQPSK Modulation
5. Supports backward compatibility to 15% Denali Mode for Non-Diff Applications
Supports Hard Decision Staircase EFEC 7%, 9.4dB NCG.
Supports Hard Decision G.709 GFEC 7%, 6.2 dB NCG.
6. Staircase FEC or GFEC supports Interoperability for DP-DQPSK Mode.

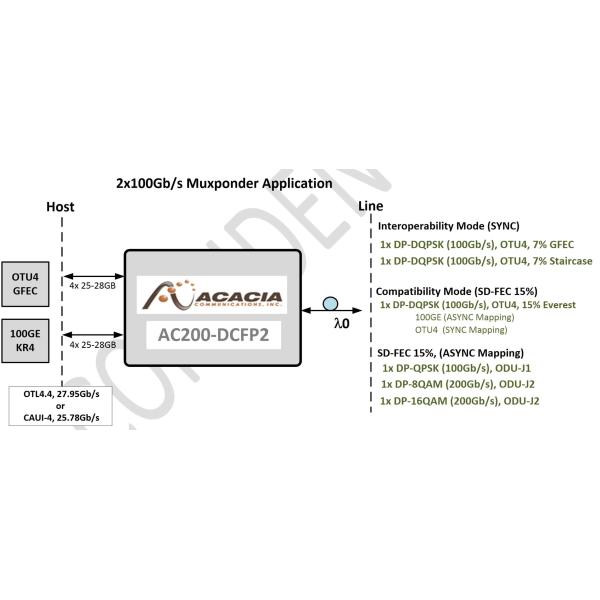

7. Network/Line OTU4 or ODUJ Processing Differential Mode
OTU4 GFEC or Staircase DP-DQPSK interoperability using OTL4.4 Signaling – Semi- Transparent Mode
15% SD-FEC Everest Mode for OTU4 signaling with DP-DQPSK modulation
Non-Differential Mode
15% SD-FEC ODUJ backward compatible with Denali for DP-QPSK and 16QAM
15% 8QAM, ODU-J2 Non-compatible with Denali
CFP2 Module Compliance
- Hot Swappable CFP-2 module
- Compliant to CFP MSA Hardware Specification 1.0 with modifications
- Compliant to CFP MSA Management Interface Specification 2.4 with modifications
Operating Conditions
| Parameter | Typical | Min | Max | Unit | Condition/comments |
| Operating case temperature | - | -10 | 80 | oC | |
| Power supply | 3.3 | 3.2 | 3.4 | V | |
| Rx input power | - | - | 13 | dBm | Same modulation format; same wavelength as Rx local oscillator; continuous or peak power |
Dimension
Application
- Data center
- 5G Network
- Long Haul Network
- OM3800-OTU Series
FAQ
1, Is this the original Acacia model?
Yes, brand new condition/
2, Do you have stock?
Yes, it works well with our OM3800-OTU service cards.
3, What is the lead time?
If you only purchase the CFP2 modules, we have stock, ready to ship.
If it is about our 200G/400G DWDM/OTN transmission system, the shipment depends on the WDM equipment production time.
4, How will you send my goods?
We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
