10/100mbps Optical Fiber Media Transceiver 1310nm Media Converter MM 2km

Name: 10100mbps Optical Fiber Media Transceiver 1310nm Media Converter MM 2km
Brand: Olycom
Price: 1 USD

Wholesale 10/100mbps Optical Fiber Media Transceiver 1310nm Media Converter MM 2km from china suppliers

Brand Name : Olycom

Model Number : TA210-FE/A2

Certification : CE RoHS FCC

Place of Origin : Guangdong, China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 5000pcs/month

Delivery Time : 3~5 working days

Packaging Details : 1pc in a box

Product name : Fiber media converter

Fiber Connector : SC standard, ST/FC optional

Wavelength : 1310nm

Input Voltage : DC 5V1A with External power adapter

Sample : Available

Contact Now

10/100mbps optical fiber media Transceiver 1310nm Media Converter MM 2km

Key Features of Media Converter

100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
Auto-MDI/MDIX copper RJ45 port
1600byte super data packet transmission
Full duplex-flow control, half duplex-back pressure
Full- positioned LEDs to indicate power and network status

Specification of 10/100mbps optical fiber media Transceiver

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	50/125um fiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um single mode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time	Store-and-Forward < 10us, straight-through<0.9us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Dimensions	70mm(W) x 93mm(D) x 25mm(H)
Weight	Net weight : 0.16kg; Gross weight : 0.42kg
Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	1K
Buffer Size	128K
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	5%~90% non-condescending

Application

10/100mbps Optical Fiber Media Transceiver 1310nm Media Converter MM 2km

Packing:

Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
The standard packing usually contains a main device, a warranty card and a user manual.
Packing box dimension for 1pc: 23*16.5*5.8cm
40pcs in a packing box of 67*33*47cm dimension.

Ordering Details:

TA210-FE/ SC-A2	10/100M, Standalone, dual fiber, multimode, SC, 2km, external power supply
TA210-FE/SC-20	10/100M, Standalone, dual fiber, single mode, SC, 20km, external power supply
TA210-FE/SC-40	10/100M, Standalone, dual fiber, single mode, SC, 40km, external power supply
TA210-FE/SC-60	10/100M, Standalone, dual fiber, single mode, SC, 60km, external power supply
TA210-FE/SC-80	10/100M, Standalone, dual fiber, single mode, SC, 80km, external power supply
TA210-FE/SC-100	10/100M, Standalone, dual fiber, single mode, SC, 100km, external power supply

Advantage:

1. Manufacturing: We are a powerful factory and has been in this industry about 20 years

2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.

3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.

4. Small order accepted: Low MOQ accepted. 1pcs are available.

5. Insurance: Industrial-grade products 3 years warranty, other products 1 years warranty.

Product Tags:

2km fiber media converter

10/100mbps fiber media converter

1310nm fiber media converter

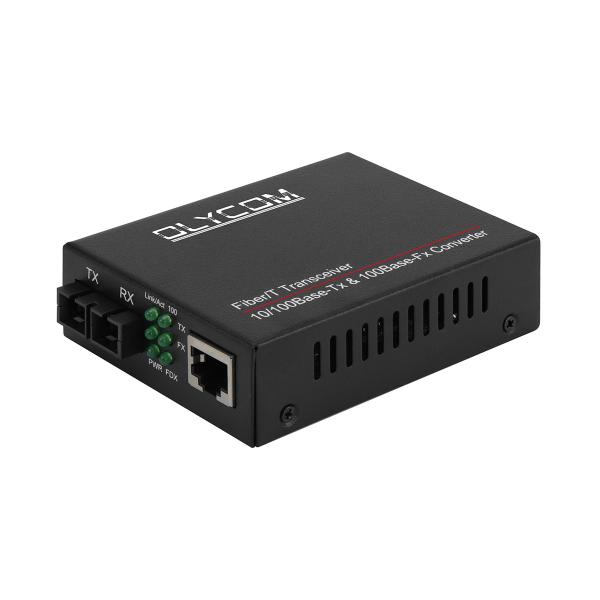

10/100mbps Optical Fiber Media Transceiver 1310nm Media Converter MM 2km Images
