8 Port Unmanaged 10/100/1000M PoE Network Switch
Key Features of PoE Switch
- 8*10/100/1000M PoE Ports +2*1000M Ethernet Ports
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE802.3x standard
- Ethernet Ports support 10/100/1000M self-adaptive
- The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode
- POE priority is supported, from port 1 to port 8, which is enabled by default
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Zero configuration feature, automatically supplied to adaptive equipment
- Panel indicator monitoring status and help failure analysis

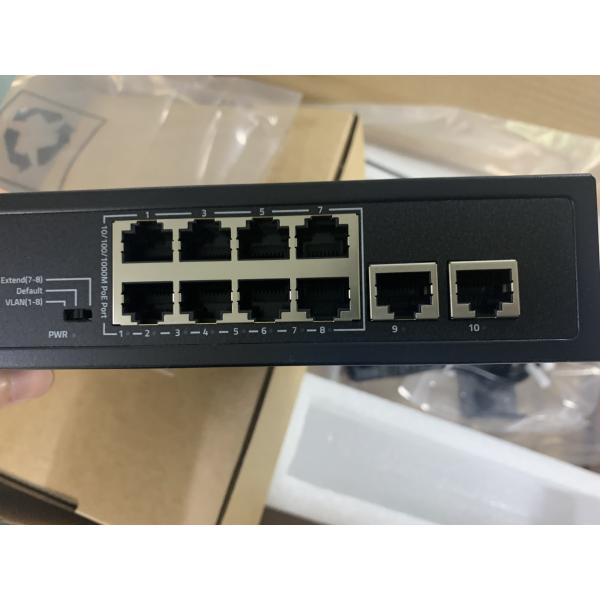

- With DIP switch, support VLAN, Default and Extend modes
Specification of 8 Port PoE Switch
| I/O Interface |
| Power | AC INPUT (100-240V) |
| Ethernet | 8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port |
| Chipset Solution | 8850DH |
| Performance |
| Bandwidth | 20Gbps |
| Pack forward rate | 14.88Mpps |
| Memory cache | 448Kbit |
| MAC address | 2K |
| Jumbo Frame | 2048bytes |
| Transfer mode | Store and forward |
| MTBF | 100000 Hours |
| Standard |
| Network Protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W) IEEE802.3at(30W) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Certificate |
| Safety Certificate | CE, FCC, RoHS |
| Environment Standard |
| Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Function Indicator |
| Indicator | PWR (Power),1-10 Green Light (Link&Data) |
| PWR | On: Powered on Off: Powered off |
| 1-10 Green Light (Link&Data) | On: Link normal Off: Link blocked Flashing: Data transmitting |
| DIP Mode | VLAN:Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default:Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. Extend:Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M. |
| Physical Structure |
| Structure Size | Product size: 200*118*44mm Package size: 245*190*60mm Net weight: 0.69KG (96W) /0.71KG (120W) Gross weight: 0.97KG (96W) /0.99KG (120W) |
| Packing Info | Outer box size: 520*320*400mm Packing quantity: 20 sets Packing weight: 20.4KG (96W) /20.8KG (120W) |
| Power Voltage | Input voltage: AC100-240V Power supply: 52V1.85A (96W) / 52V2.3A (120W) |
| power | Product power: maximum 10W / maximum 10W POE power: maximum 80W / maximum 110W |
| Packing List | Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certificate 1 PC |
Description of Gigabit Switch Unmanaged
- 10 Port Gigabit Ethernet PoE Switch, provide seamless connections to 10/100/1000M Ethernet.
- PoE is an Ethernet power supply that transmits data signals to IP-based terminals, such as IP phones, wireless access aps, and network cameras. and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.
- Power over Ethernet (PoE) technology transmits data signals for IP-based terminals (such as IP phones, APs, and network cameras) and provides DC power for the devices.
- These devices that receive DC power are called receiving devices.
- With simple installation and maintenance methods and rich service functions, it helps users build high-performance networks that are secure and reliable.
- It is mainly located in industrial parks, buildings, factories, mines, government agencies, residential broadband and other user network core or fusion layer.
- It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
