The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 2km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Applications
- 10Gbps Optical systems
- LTE systems
- Other Optical links
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.5 | 4.5 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | - | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Standard | Tc | 0 | | +70 | °C |
| Extended | -20 | | +80 | °C |
| Industrial | -40 | | +85 | °C |
| Power Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V |
| Power Supply Current | Icc | | | 350 | mA |
| Data Rate | | 1.0 | 10.3 | 10.7 | Gbps |
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter |
| Centre Wavelength | λc | 1270 | 1310 | 1350 | nm | |
| Spectral Width(RMS) | Δλ | | | 3 | nm | |
| Side-Mode Suppression Ratio | SMSR | - | - | - | dB | |
| Average Output Power | Pout | -6.5 | | -0.5 | dBm | 1 |
| Extinction Ratio | ER | 4.0 | | | dB | |
| Output Eye Diagram margin | | 15 | | | % | 5 |
| Data Input Swing Differential | VIN | 180 | | 850 | mV | 2 |
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| TX Disable | Disable | | 2.0 | | Vcc | V | |
| Enable | | 0 | | 0.8 | V | |
| TX Fault | Fault | | 2.0 | | Vcc | V | |
| Normal | | 0 | | 0.8 | V | |
| Receiver |
| Centre Wavelength | λc | 1260 | | 1600 | nm | |
| Receiver Sensitivity | | | | -14.4 | dBm | 3 |
| Receiver Overload | | 0.5 | | | dBm | 3 |
| LOS De-Assert | LOSD | | | -15.5 | dBm | |
| LOS Assert | LOSA | -30 | | | dBm | |
| LOS Hysteresis | | 0.5 | | | dB | |
| Data Output Swing Differential | Vout | 300 | | 900 | mV | 4 |
| LOS | High | 2.0 | | Vcc | V | |
| Low | | | 0.8 | V | |

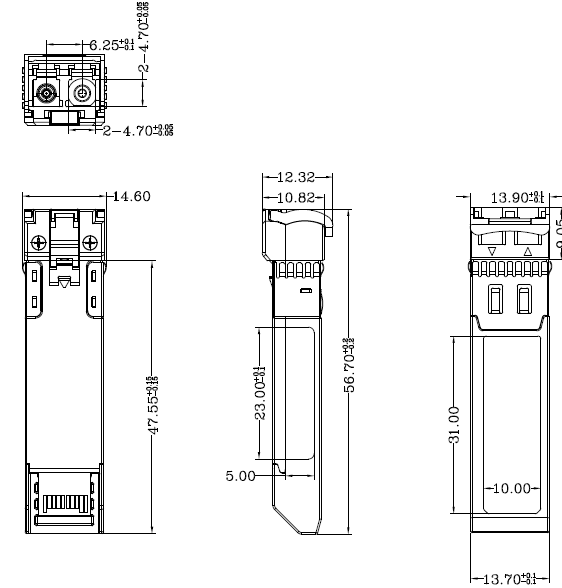

Mechanical Dimensions
