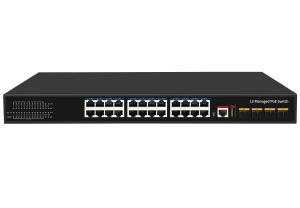

10G 24 Port Poe Switch L3 Managed Ethernet Fiber Switch
400W 4*10G Fiber Ports+24*RJ45 POE Ports
Key Features of 10G 24 port POE Switch
- Compatible with IEEE 802.1d,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z, IEEE 802.3ab,IEEE 802.3ae standard;
- L3 Management,support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2；
- Support Spanning Tree Protocol STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);
- Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN;
- Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection;
- Support IPV4/IPV6,RIP v1/v2,OSPF v2
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standards
- Support PoE management, PoE watchdog
- Surge Protection: General 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)
Specification of L3 Managed Ethernet Fiber Switch
| I/O Interface |
| Power | AC100-240V/50-60Hz |
| Ethernet | 24*10/100/1000Mbps POE Port 4*10G SFP+ Port 1*RJ45 Console Port 1*USB Port |
| Performance |
| Capacity | 128Gbps |
| Packet Forwaring Rate | 95.23Mpps |
| DDR SDRAM | 128MByte |
| Flash Memory | 16MByte |
| Packet Buffer Memory | 12Mbit |
| MAC Address | 16K |
| Jumbo Frame | 10Kbytes |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 4K |
| Standard |
| Network Protocol | IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet(optical fiber) IEEE 802.3az: Energy-efficient Ethernet IEEE 802.3ad: Standard method of performing link aggregation IEEE 802.3x: flow control IEEE 802.1ab: LLDP/LLDP-MED(Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer 2 Qos/Cos protocol (multicast filtering function) related to traffic priority IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
| PoE Protocol | IEEE802.3af(15.4W) IEEE802.3at (30W) |
| Industry Standard | EMS:EN61000-4-2(ESD) EN61000-4-5(Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125,8.7/125,9/125,10/125um |
| Certification |
| Safety Certificate | CE,FCC,RoHS |
| Environment |
| Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Function Indication |
| PWR (Power Indicator) | Lighting:Powered Un-Light:No Power |
| SYS (System Indicator) | Flashing: System startup Lighting: System Running |
| PoE (PoE Indicator) | Lighting:PoE on Un-Light:PoE off |
| ACT(Data light) | Flashing: Data transmission Not lit: No data transmission |
| Physical Specification |
| Structure Size | Product Dimensions: 440*280*44mm Packing Dimensions: 500*365*85mm Product N.W: 4.03KG Product G.W: 5.15KG |
| Packing Info | Carton Dimensions: 520*445*385mm Packing quantity: 5 sets Packing weight: 26.75KG |
| Power Voltage | Input voltage: AC100-240V/50-60Hz Power supply: 52V 7.5A 12V4A |
| Power Consumption | Product Consumption:maximum 33W PoE Budget:maximum 390W |
| Package List | Ethernet switch 1 set, Instruction manual 1 pcs, Certificate1 pcs, Power cord 1 pcs Serial cable 1 pcs, Brackets 1 pair |
Dimension
FAQ:
1. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
2. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
3. What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.
4. Can I have my own packing box?
Yes, the standard packing box does have not have Chinese letters or logo.
Its fine to customize your own version like putting your logo, model name or slogans on it.
5. What is your payment terms?
In most cases we do T/T wire transfer and full amount should be collected before shipment.
For sample orders, we receive PayPal payment for shorter processing time.
Sometimes Alipay or WeChat payment is fine, it depends on the cases.
|
|
