100Gbps QSFP28 SFP Transceiver ZR4 LC Single Mode
80km 1295nm~1310nm
Key Features of 100Gpbs SFP Module
- Support line rates from 103.125 Gb/s
- Lane bit rate 25.78 Gb/s 100GE
- Up to 80km transmission with KR4-FEC
- LAN WDM EML laser and PIN receiver with SOA
- Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
- High speed I/O electrical interface (CAUI-4)
- I2C interface with integrated Digital Diagnostic monitoring
- QSFP28 MSA package with duplex LC connector
- Single +3.3V power supply
- Maximum power consumption 4.5 W
- Complies with EU Directive 2015/863/EU
- Operating case temperature: 0 to +70 °C
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | TS | -40 | +85 | °C |
| Maximum Supply Voltage | VCC | -0.5 | 3.6 | V |
| Operating Relative Humidity | RH | | 85 | % |
Recommended Operating Environment
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Operating Case Temperature | TC | 0 | | +70 | °C | |
| Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V | |
| Power Supply Current | ICC | | | 1.82 | A | |
| Maximum Power Dissipation | PD | | | 4.5 | W | |
| Aggregate Bit Rate | BRAVE | | 103.125 | | Gb/s | |
| Lane Bit Rate | BRLANE | | 25.78125 | | Gb/s | |
| Transmission Distance | TD | | | 80 | km | |
| Coupled fiber | Single mode fiber | 9/125um SMF |
Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Transmitter |
| Signaling Speed per Lane | | | 25.78125 | | Gbps | |
| Lane Wavelengt | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | |
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | |
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | |
| Total Launch Power, 100GE | PT | 7 | | 12.5 | dBm | 1 |
| Average Launch Power per Lane, | Pavg | 1 | | 6.5 | dBm | 1 |
| OMA, each Lane | POMA | 2 | | 6.5 | dBm | 1 |
| Difference in launch power between any two lanes(Average and OMA) between any Two Lanes (OMA) | Ptx,diff | | | 3 | dB | |
| Average Output Power (Laser Turn off) | Poff | | | -30 | dBm | |
| Side Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio, 100GE | ER | 8.2 | | | dB | |
| RIN20OMA | RIN | | | -130 | dB/Hz | |
| Optical Return Loss Tolerance | TOL | | | 20 | dB | |
| Transmitter Reflectance | RT | | | -12 | dB | |
| Optical Eye Mask | {0.25,0.4, 0.45, 0.25, 0.28, 0.4} | % | 2 |
| Receiver |
| Signaling rate, each lane | | | 25.78125 | | Gbps | |
| Center Wavelength Lane 0 | λ0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| Center Wavelength Lane 1 | λ1 | 1299.02 | 1300.05 | 1301.09 | nm | |
| Center Wavelength Lane 2 | λ2 | 1303.54 | 1304.58 | 1305.63 | nm | |
| Center Wavelength Lane 3 | λ3 | 1308.09 | 1309.14 | 1310.19 | nm | |
| Damage threshold , each lane | Pdamage | 5.5 | | | dBm | |
| Average Receive Power, each lane | | -28 | | -6 | dBm | 3 |
| Receiver sensitivity Average, each lane | SEN | | | -27 | dBm | 3 |
| Los Assert | LosA | -36 | | | dBm | |
| Los De-assert | LosDA | | | -28 | dBm | |
| Los Hysteresis | LosH | 0.5 | | 5 | dB |
|

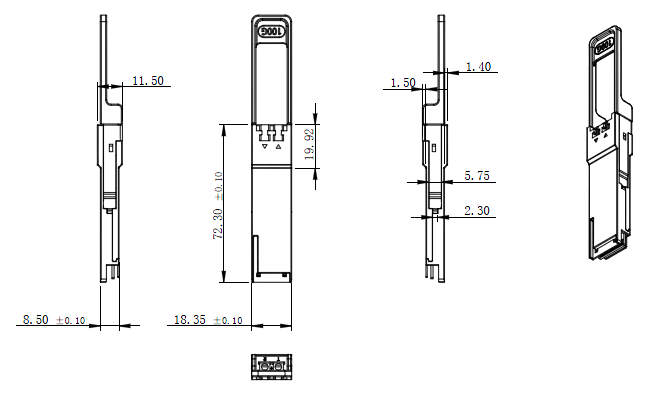

Mechanical Dimensions
Ordering information
| Part Number | Product Description |
| OQSPLHG80D | 100Gbps QSFP28 ZR4, LC, 80km, 0°C~+70°C, with DDM |
