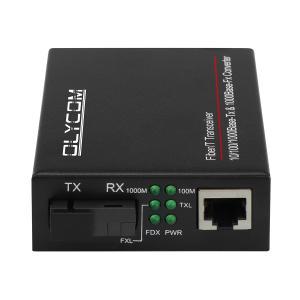

Unmanaged gigabit single mode fiber media converter 20km
Key Features of single fiber Ethernet optic converter
- 1000BASE-FXFIBER to 10/100/1000BASE-T COPPER Ethernet conversion
- 1600byte super data packet transmission
- Full- positioned LEDs to indicate power and network status
- Available for 14slots rack
- Full duplex-flow control, Half duplex-back pressure
- Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
- DC5V1A(external), CE RoHS compliant
- Black, visually nice outlook
- It is fine to make it POE version based on this same PCBA.
Specification of 20KM media converter
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet) IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 9/125um singlemode fiber cable (20/40/60/80/100/120km) |
| Conversion Mode Delay Time | Store-and-Forward<10us straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 70mm(W) x 93mm(D) x 25mm(H) |
| Weight | Net weight : 0.16kg; Gross weight : 0.42kg |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 128K |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Introduction of simplex media converter
- Olycom TA510-GE series Gigabit Ethernet media converters feature 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology, utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km.
- It’s often applied in school, cyber bars, offices, and telecommunication networks.
Application of Gigabit Media Converter
FAQ
1 What is your competitive advantage
Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS/TNT.
Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces
2 Tell me something about your packing
It is all neutral packing box. If you need to do some change, we support it.
3 Do you accept sample order?
MOQ is 1pcs/set. It is good to test sample quality for long-term cooperation.
4 Q: What is warranty time?
A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.
5. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
6. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
7. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
