Gigabit Copper sfp unmanaged Fiber Optic Media Converter
Introduction to SFP media converter
- Olycom TA330-GE series Gigabit Ethernet SFP fiber media converters bridge the gap between copper and fiber infrastructures.
- The SFP fiber media converters are designed for maximum convenience for fiber to copper Ethernet conversion application.
- This unmanaged Ethernet media converter features flexibility in transmission rates, working distances and fiber network types.
Key Features of fiber Ethernet converter
- 10/100/1000Mbps auto-sensing
- SFP slot
- External Power Supply
- Available for 14 slots rack
- High flexibility with hot plug-and-play SFP
- 1600 byte super data packet transmission
- Full duplex-flow control, Half duplex-back pressure
- Full- positioned LEDs to indicate power and network status
Specification of unmanaged media converter
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE- -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| SFP | SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available |
| Conversion Mode Delay Time | Store-and-Forward < 10us straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | LC (duplex), LC/SC(simplex) |
| Wavelength | 850/1310/1550nm |
| Dimensions | 70mm(W) x 93mm(D) x 25mm(H) |
| Weight | Net weight : 0.16kg; Gross weight : 0.42kg |

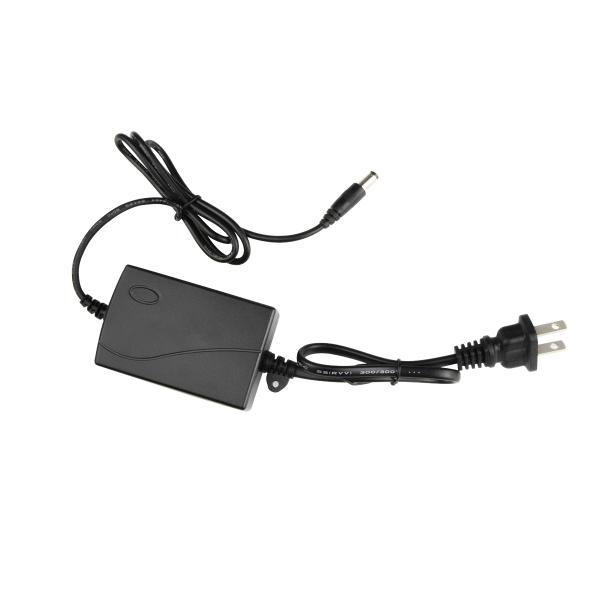

| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 128K |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Application of Fiber Optic Ethernet Media Converter
- Telecommunication Networks
- Schools, Offices, Cyber Bars
FAQ
1. What if I have OEM requirements
A: We support it, please contact us and share your idea. When all is done, we will send your order by FedEx/TNT/DHL.
2. Please tell me something about your company
A: We are a 20-year-old manufacturer with production lines, thus it is easy to control leadtime and customize.
3. What is the packing like
It is a neutral packing box(no letters/Logos on the outside).
