Gigabit POE Fiber Switch 8 Ports With POE 30W And 1 Uplink SFP Ports
Introduction of Gigabit POE Fiber Switch
IM-FP188GE is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Gigabit POE Fiber Switch
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af /at power on to 1 ~ 8RJ45 ports
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 1000Mbps SFP fiber port
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
Specification of Gigabit POE Fiber Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (1F+8TP) |
| Model No. | IM-FP188GE |
| Port | 1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
| Environment | Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Safety | CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information | Shell:Corrugated metal shell Safety class:IP40 Dimension:158 x 114.8 x 60mm Mounting method:Din-rail mounting |
| Warranty | 3 years |
Industry Standards
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic: EN 50121-4
Packing of Gigabit POE Fiber Switch
1. One product, one user manual, and one warranty card are in one box.
2. 20pcs boxes are in one carton. (67*33*47cm)
Lead Time of Gigabit POE Fiber Switch
| Quantity(Pieces) | 1-100 | >100 |
| Lead Time | 3 days | To be negotiated |
Application of Gigabit POE Fiber Switch

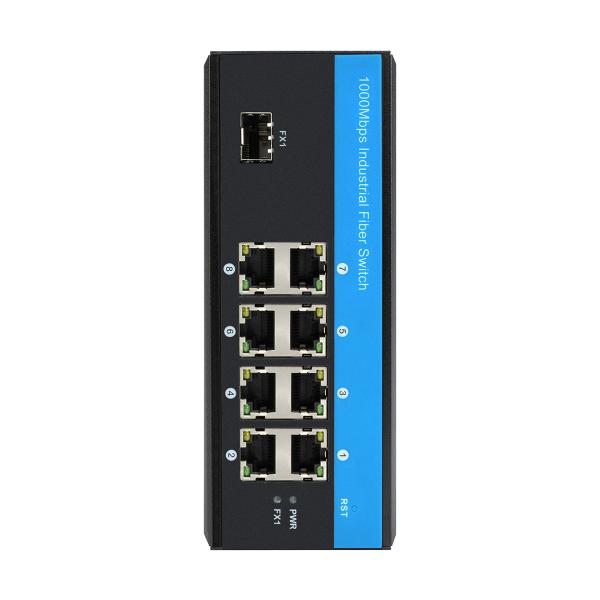

Photo of Gigabit POE Fiber Switch
