Outdoor Network Switch Gigabit Ethernet 8 RJ45 Ports And One SFP Port
Introduction of Outdoor Network Switch
IM-FS180GE is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Outdoor Network Switch
-
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
-
1 x 1000Mbps SFP fiber port
-
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
-
Support Auto MDI/MDIX
-
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
-
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
-
A store-and-forward switching mechanism
-
Operating environment temperature: -40 ° ~75 ° c
Specification of Outdoor Network Switch
| Product Name | Outdoor Network Switch Gigabit |
| Model No. | IM-FS180GE |
| Port | 1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | Input voltage:DC 12-52V No-load power:5W Reverse connection: support |
| Environment | Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial CE/LVD EN60950 |
| Mechanical information | Shell: Corrugated metal shell Safety class: IP44 Dimension:158 x 114.8 x 60mm Mounting method: Din-rail mounting |
| Warranty | 3 years |
FAQ of Outdoor Network Switch
Q: Are you a manufacturer or trading company?
A: We are a manufacturer in Shenzhen, China, focusing on fiber optical equipment products. We insist on R&D, with over 18 -years of professional experience in the area.
Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.
Q: What is the warranty time?
A: It is usually valid for one year, and 5 years for industrial products. Technical support will be offered free.
Application of Outdoor Network Switch

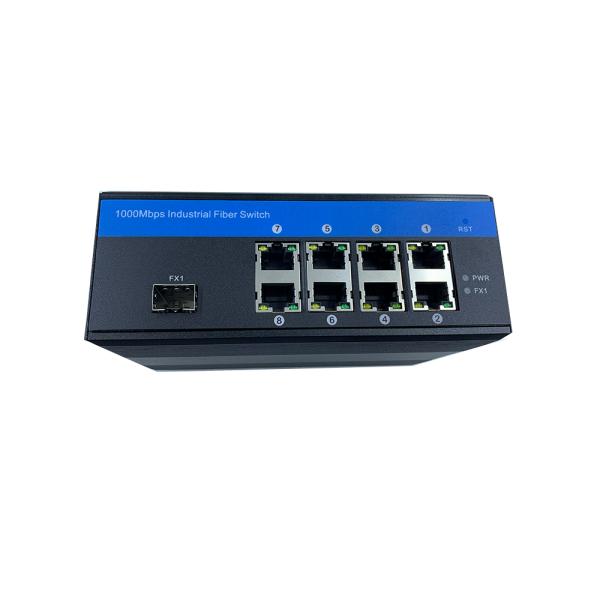

Photo of Outdoor Network Switch
