Stable Transmission Ethernet Fiber Switch 10/100Base SFP Fiber Ports
Introduction of Ethernet Fiber Switch
IM-FS240FE is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Ethernet Fiber Switch
- 4 x 10/100Mbps Auto-sensing RJ45 ports
- 2 x 100Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
Specification of Ethernet Fiber Switch
| Product Name | Stable Transmission Ethernet Fiber Switch |
| Model No. | IM-FS240FE |
| Port | 2 x 100Mpbs SFP port
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
4x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward
System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | Input voltage:DC 12-52V
No-load power:5W
Reverse connection: support |
| Environment | Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial
CE/LVD EN60950 |
| Mechanical information | Shell: Corrugated metal shell
Safety class: IP44
Dimension:158 x 114.8 x 60mm
Mounting method: Din-rail mounting |
| Warranty | 3 years |
Packaging of Ethernet Fiber Switch
1. One product, one user manual, and one warranty card are inside one box.
2. Twenty pieces of boxes are in one carton.
FAQ of Ethernet Fiber Switch
Q: What's your MOQ?
A: 1 piece
Q: What is the warranty time?
A: Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.
Q: How long is the lead time?
A: Usually 3-5 days, but need to check when you process orders.
Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about a customized product, we also provide it.
Q: What can you buy from us?
A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver
Application of Ethernet Fiber Switch

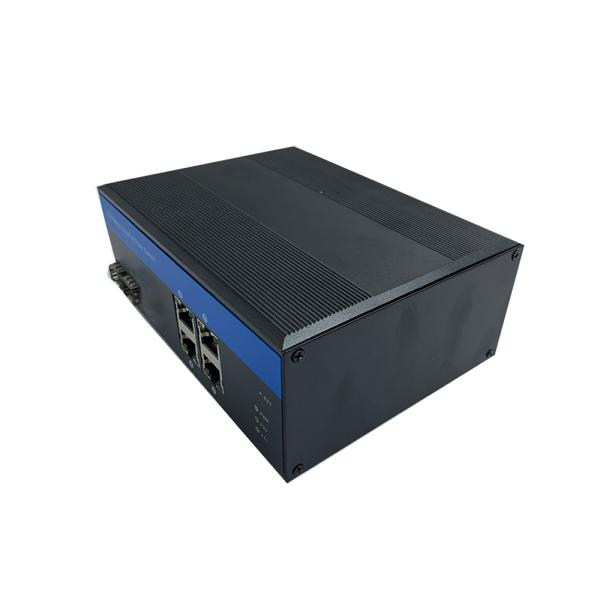

Photo of Ethernet Fiber Switch
