Industrial Unmanaged POE Switch 6 Port

Unmanaged Poe Switch 10 / 100 Mbps 6 Port Network Switch With 2 SFP Fiber Port

Introduction

Key Features

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
• IEEE 802.3af power on to 1 ~ 6 RJ45 ports
• 6 x 10/100Mbps Auto-sensing RJ45 ports
• 2 x 100Mbps SFP fiber ports
• 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• Max power to15.4W under af standard, 30W under at standard to each PoE port
• Detect the PoE models of electrical equipments.
• A store-and-forward switching mechanism
• Operating temperature:-40 ° ~85 ° c
• Storage temperature:-40°～ 85°C

• Working humidity:10%～90%,non-condensing

• Storage humidity:10%～95%,non-condensing

Product Details

• Transmission mode: storage and forward
• System bandwidth:40Gbps (non-traffic jam)
• 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
• 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
• Transmission distance: 20Km,40Km,60Km,80Km,100Km
• LEDs: Power, network, fiber

Specification

Quality Assurance

1. We absolutely never use old and refurbished materials.
2. Always a pre-production sample before mass production.
3. Have professional engineers check the quality.
4. All products have passed CE, FCC, ROHS, and other certifications.
5. Always final Inspection before shipment.

Application



EMC Industrial Unmanaged POE Switch

EMC 6 port network switch

6 port Industrial Unmanaged POE Switch

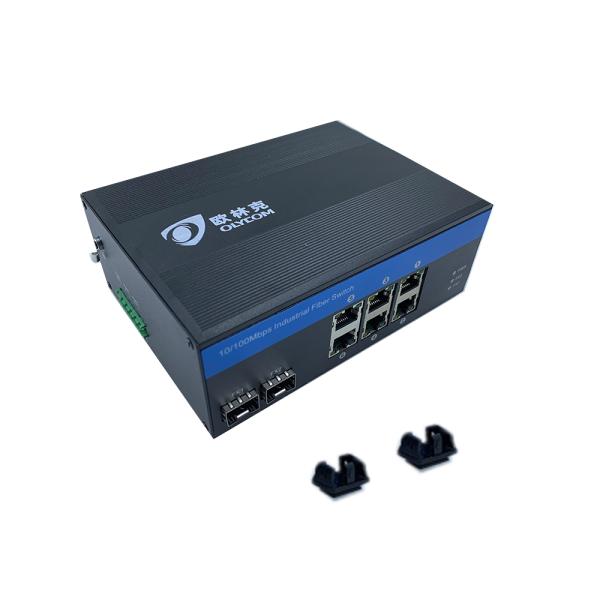

Industrial Unmanaged POE Switch 6 Port Images
