Mini Fiber Optic Media Converter Fast Ethernet Unmanaged Singlemode Multimode Duplex

Name: Mini Fiber Optic Media Converter Fast Ethernet Unmanaged Singlemode Multimode Duplex
Brand: Olycom
Price: 1 USD

Wholesale Mini Fiber Optic Media Converter Fast Ethernet Unmanaged Singlemode Multimode Duplex from china suppliers

Brand Name : Olycom

Model Number : TA210-FE

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1Pcs

Price : Negotiable

Payment Terms : L/C, Paypal

Supply Ability : 2000Pcs per week

Delivery Time : 4~7 working days

Packaging Details : 1 piece in 1 carton. 0.42KG/pcs

Product name : Fiber Optic Ethernet Media Converter

Rate : 10/100Mbps

Power : External type, DC5V1A, 2A optional

Weight : 0.16kg(N.W)

Size : 70mm(W) x 93mm(D) x 25mm(H)

Wavelength : 1310nm, Single mode

Port : SC port, dual fiber

Color : Black

Contact Now

10/100Mbps Fiber Ethernet Media Converter

Product Overview

The TA200 series of Ethernet media converters with external power supply are 10/100Mbps auto-sensing and utilize fiber optics to extend the physical distance range of typical Ethernet links (100m) to 5Km max. on MMF and 100Km max. on SMF.

Key Features

100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
Auto-MDI/MDIX copper RJ45 port
1600byte super data packet transmission
Full duplex-flow control, half duplex-back pressure
Full- positioned LEDs to indicate power and network status

Specification

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	50/125um fiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um single mode fiber cable (20/40/60/80/100km)
Conversion Mode Delay Time	Store-and-Forward < 10us Straight-through<0.9us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Dimensions	70mm(W) x 93mm(D) x 25mm(H)
Weight	Net weight : 0.16kg; Gross weight : 0.42kg
Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	1K
Buffer Size	128K
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	5%~90% non-condescending

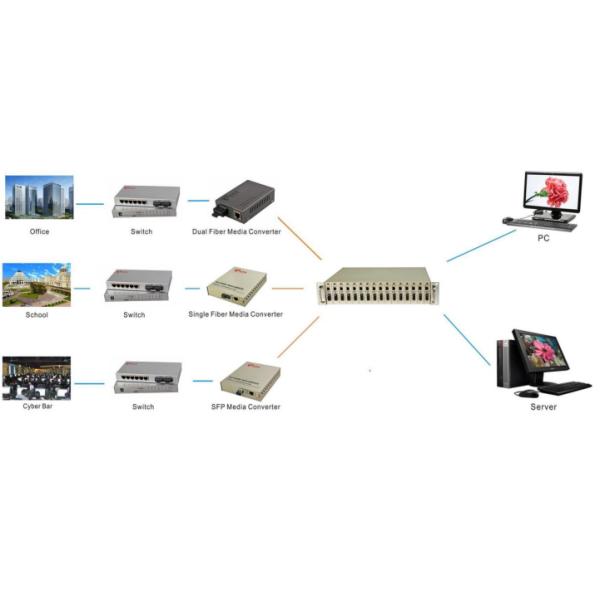

Application

Mini Fiber Optic Media Converter Fast Ethernet Unmanaged Singlemode Multimode Duplex
