RS485 Data Fiber Optic Video Extender
Introduction

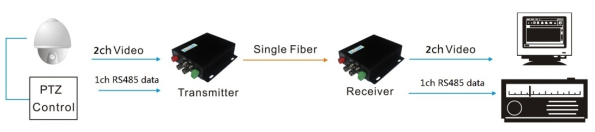

- OM610-2V↑1D↓WT/R optical video transmitter and receiver transmit 2ch video and 1ch RS485 data signals on optical fiber.
- Low optical link loss – max 30dB
- On 9/125um Single mode fiber its working distance is 20Km to 80KM
- On multimode fiber it’s 1Km
- Hot plug-and-play with switch power supply
Features
- Available in standalone and 3U rack
- Robust metal casing
- Bi-di transmission on 1 fiber with WDM
- Lightning-proof solution
Specification
| Optical |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video |
| Channel Quantity | 2ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data |
| Channel Quantity | 1ch, from control center to camera |
| Data protocol | RS485 |
| Bandwidth | 0~300kbps |
| Error rate | 10-9 |
| Interface | Phoenix terminal |
| Electrical. Environmental. Mechanical |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 120mm ×105mm ×28mm |
| Weight | 0.30kg/piece (Net Weight), 1.00 kg/pair (Gross Weight) |
Application
- Military monitoring (frontier defense, national defense)
- Electronic power oil field, TV station program broadcasting
- Building and campus monitoring system
- Express way security protection and toll station system
Q&A
1. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
2. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
3. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
Our Advantages
1, OEM
2, Fast dispatch(warehouse&production line to control the leadtime)
3, Flexible(we are a manufacturer for years and dealt with many customized requirements)
Product Pictures
