1470nm XFP CWDM 40KM Optical Module
Product Features
- Supports 9.953Gb/s to 11.1Gb/s bit rates

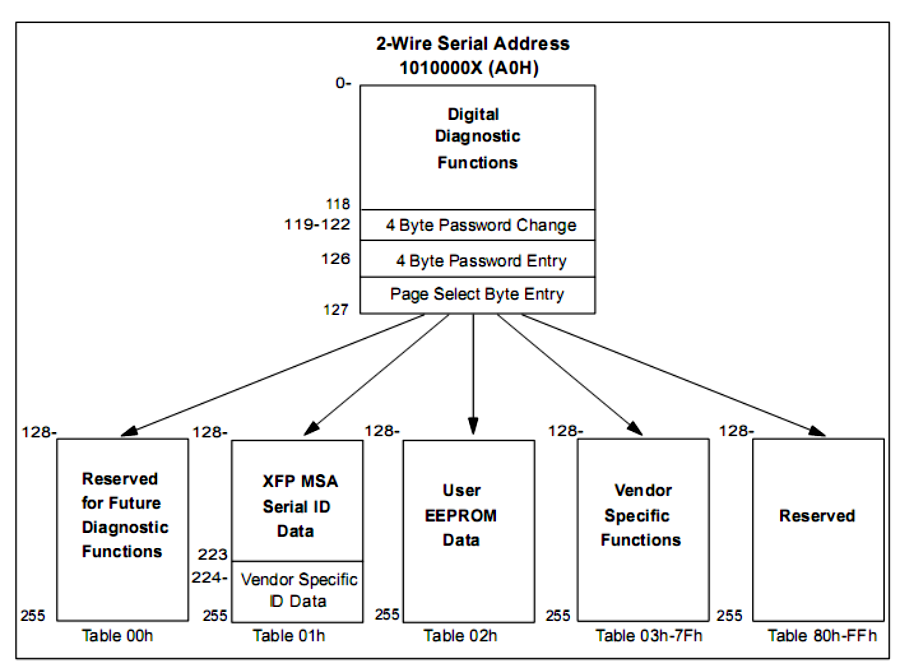

- Hot-pluggable XFP footprint, Built-in digital diagnos
- Maximum link length of 40km with SMF
- CWDM Cooled EML laser and PIN photodiode
- XFP MSA package with duplex LC connector
- No reference clock required
- Single +3.3V power supply
- Power dissipation <3.5W
- Compatible with RoHS
- Temperature range: 0 to +70°C
Application
- 10G CWDM Networks
- SONET OC-192&SDH STM-64 at 9.953Gbps
- 10G Ethernet Applications
- 10G Fiber Channel Applications
- 10GE over G.709 at 11.09Gbps
- OC192 over FEC at 10.709Gbps
- Other optical links, up to 11.1Gbps
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter |
| Centre Wavelength | λc | λc-6.5 | λc | λc+6.5 | nm | |
| Spectral Width(-20dB) | Δλ | | | 1 | nm | |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Average Output Power | Pout | -1 | | +2 | dBm | 1 |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Data Input Swing Differential | VIN | 180 | | 950 | mV | 2 |
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| TX Disable | Disable | | 2.0 | | Vcc | V | |
| Enable | | 0 | | 0.8 | V | |
| Receiver |
| Centre Wavelength | λc | 1450 | | 1620 | nm | |
| Receiver Sensitivity | | | | -16 | dBm | 3 |
| Receiver Overload | | 0.5 | | | dBm | 3 |
| LOS De-Assert | LOSD | | | -17 | dBm | |
| LOS Assert | LOSA | -26 | | | dBm | |
| LOS Hysteresis | | 0.5 | | 4 | dB | |
| Data Output Swing Differential | Vout | 400 | 600 | 800 | mV | 2 |
| LOS | High | 2.0 | | Vcc | V | |
| Low | | | 0.8 | V | |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | -5 | | +70 | °C |
| Power Supply Voltage @3.3V | Vcc | 3.135 | 3.30 | 3.465 | V |
| Power Supply Current | Icc | | | 1000 | mA |
| Data Rate | | 9.95 | | 11.1 | Gbps |
Description
The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 40km on SMF.
The transceiver module comprises a transmitter with 1470~1610nm CWDM Cooled EML laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Mechanical Specification
Ordering information
| Part Number | Product Description |
| OXSPLXG40D-Cxx | 9.953~11.1Gbps, 1450~1610nm CWDM, Single Mode, 40km, 0 ~ +70ºC |
| λC Wavelength Guide |
| Code | λC | Unit | Code | λC | Unit | Code | λC | Unit | Code | λC | Unit |
| 47 | 1470 | nm | 51 | 1510 | nm | 55 | 1550 | nm | 59 | 1590 | nm |
| 49 | 1490 | nm | 53 | 1530 | nm | 57 | 1570 | nm | 61 | 1610 | nm |
