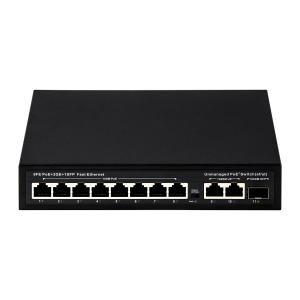

Unmanaged POE Switch 8 PoE 10/100Mbps + 2 LAN 100/1000Mbps + 1SFP 100/1000M For CCTV

Brand Name : Olycom

Model Number : OM011008-PSE-FE

Certification : CE RoHS FCC ISO9001

Place of Origin : Guangdong, China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 5000pcs/month

Delivery Time : 3~5 working days

Packaging Details : 1pc in a box

Product name : 8 port POE Switch

Power Adapter Voltage : AC 110V-240V

PoE Ports : 8 ports support poe

Brand : Olycom/customized/no brand

PoE Output Power : 15.4W/30W

Contact Now

POE switch unmanaged 8 PoE 10/100Mbps + 2 LAN 100/1000Mbps + 1SFP 100/1000M for CCTV

Introduction of unmanaged switch

OLYCOM OM011008-PSE-FE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 8 Poe-powered RJ45 ports and 2 RJ45 uplink ports. All of eight RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 150W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.

With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.

Key Features of poe switch

  • 8*10/ 100Mbps PoE ports, 2*10/ 100/1000Mbps network ports, 1*1000M SFP fiber port
  • Support IEEE802.3af/at
  • Support restrain network storm, VLAN function
  • Support Max Transmission distance up to 250m
  • All port supported by MDI/ MDIX auto flip and self-negotiation
  • Built-in power supply
  • Maximum power of single PoE port : 30 W
  • Whole machine power: 120W&150W
  • Adopts store-and-forward architecture
  • Fan-less, natural cooling, small,compact and quiet design,suitable for desktop or wall
  • Support lightning protection 4kV

Specification of Industrial 8 port POE Switch

Power Power Adapter Voltage AC 110V-240V
Consumption 120W/150W

Network Connector

 Network Port PoE Ethernet Port 1~8 Port : 10/ 100Mbps
Ethernet port Uplink Port : 10/ 100/1000Mbps
Fiber Port Uplink Port : 1000M SFP
Transmission Distance

1~8 Port :

100Mbps:0~100m;

10Mbps: 0~250m;
Uplink Port : 0 ~ 100m
SFP: depend on the SFP transceiver (20km-120km)
Transmission Medium Cat5/5e/6 standard network cable

Network Switch

 Network Standard

IEEE802.3/802.3u,

IEEE802.3x,

IEEE802.ab
Switching Capacity 2.0Gbps
Packet Buffer Memory 1Mbits
Throughput 1.488Mpps
MAC Table 1K
Packet Forwarding rate

10Mbps:14880pps/port

100Mbps: 148800pps/port
Power Over Ethernet PoE Standard IEEE 802.3af/at
PoE Power Supply 12 45 + ,36 78- , 8 core power supply
PoE Power af=15.4W,at=30W for each port
RJ45 port Port Function

Power priority mechanism,

fast and forward,

MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode
LED Indicator LED Indicator

LINK/ACT.100Mbps;

PoE Status Indicator;

Power indicator;Extender
Environmental Working temperature 0C~55C
Relative Humidity 20~95%
Storage temperature -20C~70C
Mechanical Dimension (L ×W × H) 220mm*140mm*45mm
Color Black
Weight 1.05kg

Application

Unmanaged POE Switch 8 PoE 10/100Mbps + 2 LAN 100/1000Mbps + 1SFP 100/1000M For CCTV

Packing box of switch

Unmanaged POE Switch 8 PoE 10/100Mbps + 2 LAN 100/1000Mbps + 1SFP 100/1000M For CCTV

Production Steps

  • Welding: Weld the necessary components
  • Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
  • Assembling: Builds up components of a product, like panels, screws, PCB boards.
  • Testing: To make sure the product is basically working fine after assembling
  • Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
  • Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
  • QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
  • When all above is done, the product will go to market.
