5-port Industrial Network Switch E-mark Ethernet Switch With 4 KV Surge Protection

Name: 5port Industrial Network Switch Emark Ethernet Switch With 4 KV Surge Protection
Brand: Olycom
Price: 1 USD

Wholesale 5-port Industrial Network Switch E-mark Ethernet Switch With 4 KV Surge Protection from china suppliers

Brand Name : Olycom

Model Number : IM-FS050GE

Certification : E-Mark certification, CE, FCC, ROHS

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 3000pcs/month

Delivery Time : 4~7 working days

Packaging Details : 1pc in a box, 0.45kg gross weight

Transmission mode : storage and forward

System bandwidth : 40Gbps (non-traffic jam)

LEDs : Power, network

Input voltage : DC 9-52V

Rail Traffic : EN 50121-4

Warranty : 3 years

Contact Now

Full Gigabit E-mark Industrial Ethernet 5-port Switch

Key Features of E-mark Ethernet Switch

5 x 10/100/1000Mbps Auto-sensing RJ45 ports
4 KV Ethernet surge protection, adapt to a harsh outdoor environment Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism
Operating environment temperature: -40 ° ~75 ° c

Specification of E-mark Ethernet Switch

Product Name	10/100/1000Mbps Industrial Network Switch (5TP)
Model No.	IM-FS050GE
Port	1 x 10/100/1000Mpbs uplink network port 4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network
Power supply	Input voltage:DC 9-52V No-load power:5W Reverse connection:support
Environment	Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing
Industry Standards	EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950
Mechanical information	Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting
Warranty	Replacement within 1 year; 3 years repairing

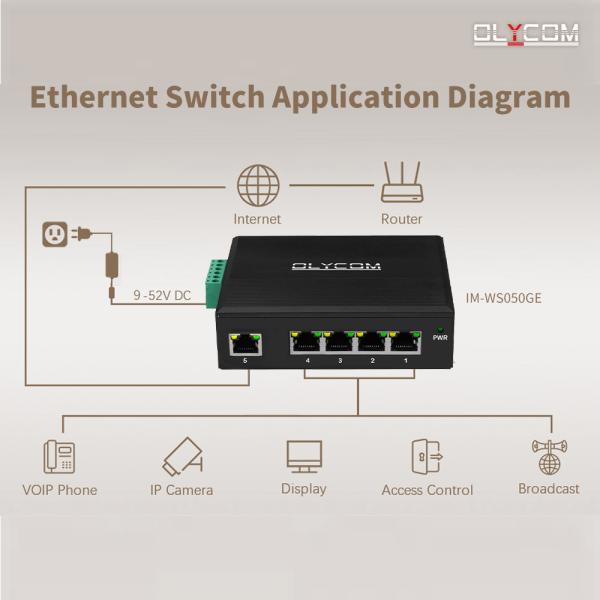

Application of E-Mark Certified Ethernet Switch

Introducing our IM-FS050GE series - the ultimate 10/100/1000 Mbps industrial network switch. Boasting a simple yet robust construction, it can handle power range up to 100 meters and can operate flawlessly in extreme temperature from -40 ℃ to + 75 ℃. With its IP40 protection degree and EMC industrial grade requirements, it's the perfect choice for industrial applications that require reliable network connectivity. Plus, it's easy to install with DIN rail installation, and it has passed dangerous environmental certification, and complies with FCC and CE standards, making it a top choice for your automation system. Trust in our industrial-grade design for continuous and stable network operation, even in the toughest of environments.

5-port Industrial Network Switch E-mark Ethernet Switch With 4 KV Surge Protection

Dimension of 5-port Gigabit Switch

5-port Industrial Network Switch E-mark Ethernet Switch With 4 KV Surge Protection

Packing Box of Din Rail Unmanaged Switch

5-port Gigabit Switch Steps

Welding: Weld the necessary components
Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
Assembling: Builds up components of a product, like panels, screws, PCB boards.
Testing: To make sure the product is basically working fine after assembling
Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
When all above is done, the product will go to market.
