16 Port PoE Switch 10/100M Ethernet With 2 SFP/RJ45 Uplink For CCTV Cameras 300W Budget

Name: 16 Port PoE Switch 10100M Ethernet With 2 SFPRJ45 Uplink For CCTV Cameras 300W Budget
Brand: Olycom
Price: 1 USD

Wholesale 16 Port PoE Switch 10/100M Ethernet With 2 SFP/RJ45 Uplink For CCTV Cameras 300W Budget from china suppliers

Brand Name : Olycom

Model Number : OM01816G-PSE-FE

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 1500pcs/month

Delivery Time : 4~7 working days

Packaging Details : 1 piece in a box, 1.92Kg G.W.

Product name : 16 port CCTV PoE Switch

Rate : 10/100M downlink, Gigabit uplink

PoE budget : 200W/300W optional

Power input : AC100V~AC240V

Dimension : 268*181*44mm

Weight : 1.44kg

Contact Now

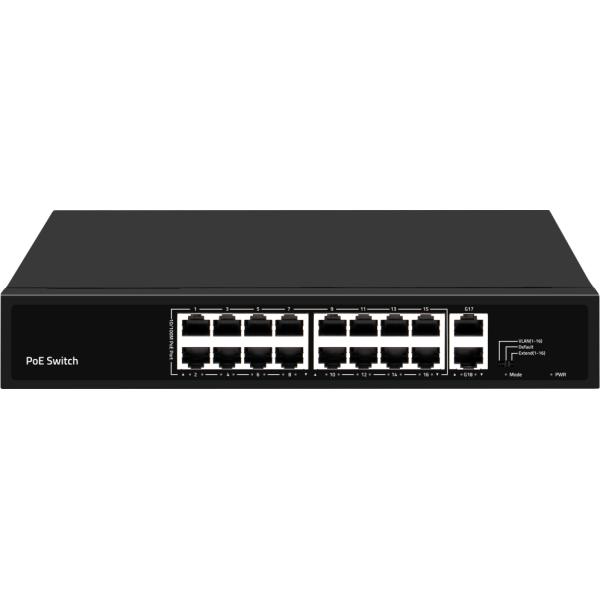

Commercial Unmanaged 16 port CCTV PoE Switch

Specification of 16 port network switch

I/O Interface
Power	AC 100~240V 50/60Hz
Ethernet	1610/100M PoE Port 2Gigabit uplink RJ45 Port
Hardware parameters
Bandwidth	7.2 Gbps
Packet Forwarding Rate	5.35Mpps
Packet Cache	1.5Mbit
MAC Address	2K
Jumbo Frame	9216bytes
Forwarding Mode	Store and forward
Protocol Standards
Network Standard	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x
PoE Standard	IEEE802.3af (15.4 W) IEEE802.3at (30 W)
Optical Medium	10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)
Indicator
Indicator	PWR(POWER), Mode(DIP), 1-18 Green Light(Link&Data)
PWR	Lighting:Powered Un-Light:Default(General mode)
Mode	Linghting:VLAN(Port Isolation) Un-Light:Default(General mode) Flash:Extend(Extend)
1-18 Green	Lighting:Connecting Un-Light:Disconnect Flashing:Data Transmit
DIP	VLAN,Default,Extend
VLAN	Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default	OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive;
Extend	Extend : Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Certification
Safety Certification	CE FCC RoHS
Environment Standard
Working Environment	Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing
Physical Specification
Structure Size	Product Dimensions: 26818144mm Package Dimensions:31226284mm Product N.W:1.29KG(200w)/1.44KG(300w) Product G.W:1.77KG(200w)/1.92KG(300w)
Pakcing Infomation	Carton Dimensions:540435332mm Packing Quantity:10pcs Packing Weight:18.7KG(200w)/20.2KG(300w)
Power Voltage	Input Voltage :AC 100-240 V Power supply:52V 3.8A / 52V 5.76A
Power	Product power: maximum 10W / maximum 10W POE power: maximum 180W / maximum 280W
Package List	Switch 1 pc, Power cord 1 pc, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair

Application of CCTV poe switch

16 Port PoE Switch 10/100M Ethernet With 2 SFP/RJ45 Uplink For CCTV Cameras 300W Budget

Urban optical fiber broadband network: Telecommunications, cable TV, network system integration, according to network operators.
Broadband special network: Suitable for finance, government, oil, electricity, public security, education and other industries.
Multimedia transmission: Image, voice, data comprehensive transmission, suitable for remote teaching, conference television, video telephone and other applications.

Features of Gigabit Ethernet switch

16*10/100M PoE Ports + 2*Gigabit Uplink Ethernet Ports
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standard
Ethernet port support 10/100M adaptive
Flow control mode: full duplex using IEEE 802.3x standard, half duplex using Back pressure standard
Support port auto-flip(Auto MDI/MDIX)
Uses a store-and-forward switching mechanism
Panel indicators monitor operating status and help with fault analysis
Three-position one-touch intelligent dip switch, supporting VLAN, Default, Extend, three modes
Compatible with 1U rack
