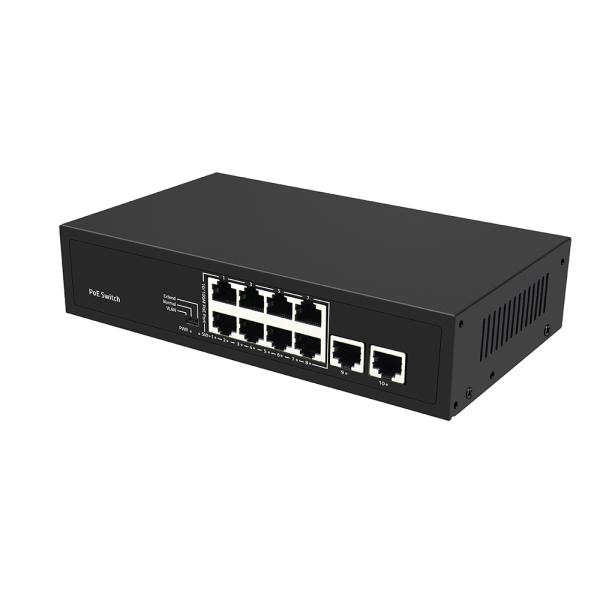

8 Port PoE Switch10/100M Fast Ethernet VLAN 250-Meter PoE Distance AC Input Unmanaged

Name: 8 Port PoE Switch10100M Fast Ethernet VLAN 250Meter PoE Distance AC Input Unmanaged
Brand: Olycom
Price: 1 USD

Wholesale 8 Port PoE Switch10/100M Fast Ethernet VLAN 250-Meter PoE Distance AC Input Unmanaged from china suppliers

Brand Name : Olycom

Model Number : OM01008-PSE-FE

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 2500pcs/month

Delivery Time : 4~7 working days

Packaging Details : 1 piece in a box, 890g G.W.

Product name : 8 port CCTV commercial PoE Switch

Rate : 10/100Mbps

PoE budget : 96W

Power input : AC 100V~240V

Dimension : 200*118*44mm

PoE distance : 100-meter, 250-meter

Contact Now

8-Port 10/100M Ethernet CCTV PoE Switch

Features of CCTV Security Switch

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards
8*10/100M POE ports + 2* 10/100M Ethernet Uplink ports
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards
Ethernet port supports 10/100M adaptive and POE functions
Support port auto flip (Auto MDI/MDIX)
Automatically supplied to adaptive devices
Panel indicator monitoring status and help failure analysis
Support for VLAN mode, Normal mode and Extend mode
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard

With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network.

It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband.

It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.

Specification of Fast Ethernet Switch

I/O Interface
Power	Input: AC 100-240V, 50/60Hz
Ethernet	8 Port 10/100M PoE + 2 Port 100M Ethernet Uplink
Performance
Switching Capacity	2Gbps
Throughput	1.488Mpps
Packet Buffer	448Kbit
MAC Address	2K
Jumbo Frame	2048bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Standard
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af (15.4W) IEEE802.3at (30W)
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m)
Protection
Security Certificate	CE,FCC,RoHS
Environment
Working Environment	Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing
Indication
LED Indicators	PWR(power supply),SW(DIP),1-10 Green(Link&Data)
DIP Switch	VLAN:Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; Extend:Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Mechanical
Structure Size	Product Dimension : 20011844mm Package Dimension : 24519060mm N.W:0.61kg G.W:0.89kg
Packing Info	Carton MEAS:520320400mm Packing Qty:20 units Packing Weight:18.8KG
Power Voltage	Input Voltage :AC 100-240 V Power supply:52V1.85A
Power	Product power: maximum 10W POE power: maximum 80W
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc

Application of Commercial PoE Switch

8 Port PoE Switch10/100M Fast Ethernet VLAN 250-Meter PoE Distance AC Input Unmanaged

Packing Information

The standard packing usually contains a main device, a power cable and a user manual.
There is a product label on the device and outside the packing box.
For the product label, It is fine to put your logo/model in the description
Of course, it supports your language(Korean/Italian/Russian...

8 Port PoE Switch10/100M Fast Ethernet VLAN 250-Meter PoE Distance AC Input Unmanaged
