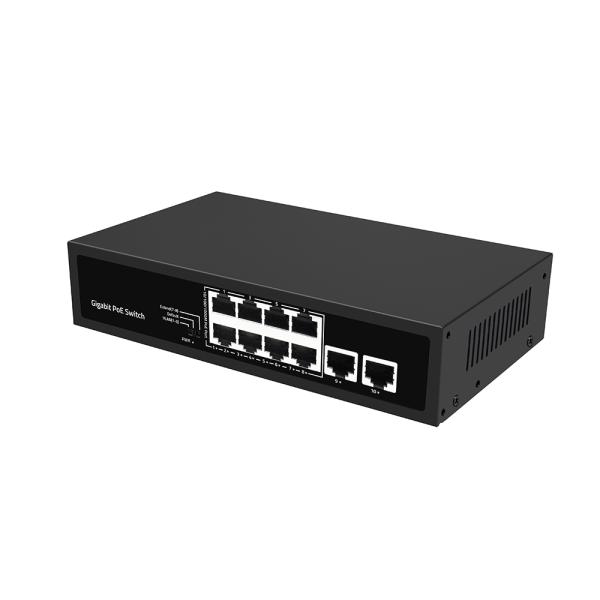

8 Port Gigabit CCTV PoE Switch
Introduction to Commerical Network Switch
- PoE is an Ethernet power supply that transmits data signals to IP-based terminals, such as IP phones, wireless access aps, and network cameras. and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.
- This 10 Port Gigabit Ethernet PoE Switch provide seamless connections to 10/100/1000M Ethernet.
- With simple installation and maintenance methods and rich service functions, it helps users build high-performance networks that are secure and reliable.
- It is mainly located in industrial parks, buildings, factories, mines, government agencies, residential broadband and other user network core or fusion layer
- It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Key Features of 120W PoE Switch
- 8*10/100/1000M PoE Ports +2*1000M Ethernet Ports
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE802.3x standard
- Ethernet Ports support 10/100/1000M self-adaptive
- The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode
- POE priority is supported, from port 1 to port 8, which is enabled by default
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Zero configuration feature, automatically supplied to adaptive equipment
- Panel indicator monitoring status and help failure analysis
- With DIP switch, support VLAN, Default and Extend modes
Specification of Gigabit Ethernet Switch
| I/O Interface |
| Power | AC INPUT (100-240V) |
| Ethernet | 8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port |
| Chipset Solution | 8850DH |
| Performance |
| Bandwidth | 20Gbps |
| Pack forward rate | 14.88Mpps |
| Memory cache | 448Kbit |
| MAC address | 2K |
| Jumbo Frame | 2048bytes |
| Transfer mode | Store and forward |
| MTBF | 100000 Hours |
| Standard |
| Network Protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W) IEEE802.3at(30W) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Certificate |
| Safety Certificate | CE, FCC, RoHS |
| Environment Standard |
| Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Function Indicator |
| Indicator | PWR (Power),1-10 Green Light (Link&Data) |
| PWR | On: Powered on Off: Powered off |
| 1-10 Green Light (Link&Data) | On: Link normal Off: Link blocked Flashing: Data transmitting |
| DIP Mode | VLAN:Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default:Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. Extend:Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M. |
| Physical Structure |
| Structure Size | Product size: 200*118*44mm Package size: 245*190*60mm Net weight: 0.69KG (96W) /0.71KG (120W) Gross weight: 0.97KG (96W) /0.99KG (120W) |
| Packing Info | Outer box size: 520*320*400mm Packing quantity: 20 sets Packing weight: 20.4KG (96W) /20.8KG (120W) |
| Power Voltage | Input voltage: AC100-240V Power supply: 52V1.85A (96W) / 52V2.3A (120W) |
| power | Product power: maximum 10W / maximum 10W POE power: maximum 80W / maximum 110W |
| Packing List | Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certificate 1 PC |
Company Information
We manufacture and market fiber optic connectivity devices.
We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.
We are a 20-year-old manufacturer with production lines and basically provide
2 4 6 8 10 12 16 port din-rail gigabit industrial L2 L3 managed switch
Normal POE fiber optic Ethernet media converter
14 slots 16 slots media converter chassis rack
AHD TVI CVI Analog video to fiber converter
Customized data video Ethernet phone audio contact closure over fiber optic extender converter SFP copper fiber transceiver
Serial to fiber optic converter
We are fully connected with our customers, even if just for a single purchase. It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.
OEM and ODM service are optional. OLYCOM can provide product with customer LOGO and will do our best to meet clients requirements.
The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.
